Chapter 8: Leasing

Leasing is the mechanism used between applications to give access to resources over a period of time in an agreed manner

8.1. Leases

Leases are requested for a period of time. In distributed applications, there may be partial failures of the network or of components on this network. Leasing is a way for components to register that they are alive, but for them to be ``timed out'' if they have failed, are unreachable, etc. In Jini, one use of leasing is for a service to request that a copy be kept on a lookup service for a certain length of time for delivery to clients on request. The service requests a time in the ServiceRegistrar's method register(). Two special values of the time are

  1. Lease.ANY - the service lets the lookup service decide on the time

  2. Lease.FOREVER - the request is for a lease that never expires

The lookup service acts as the granter of the lease, and decides how long it will actually create the lease for. (The lookup service from Sun typically sets the lease time as only five minutes.) Once it has done that, it will attempt to ensure that the request is honoured for that period of time. The lease is returned to the service, and is accessible through the method getLease() of the ServiceRegistration object. These objects are shown in figure 8.1

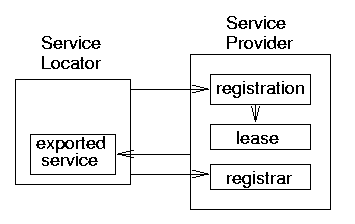

Figure 8.1: Objects in a leased system

ServiceRegistration reg = registrar.register();
Lease lease = reg.getLease();

The principal methods of the Lease object are


package net.jini.core;

public interface Lease {
    void cancel() throws
                  UnknownLeaseException,
                  java.rmi.RemoteException;
    long getExpiration();
    void renew(long duration) throws
                  LeaseDeniedException,
                  UnknownLeaseException,
                  java.rmi.RemoteException;
}
The expiration value from getExpiration() is the time in milliseconds since the beginning of the epoch (the same as in System.currentTimeMillis()). To find the amount of time still remaining from the present, the current time can be subtracted from this:

long duration = lease.getExpiration() - System.currentTimeMillis();

8.1.1 Cancellation

A service can cancel its lease by using cancel(). The lease communicates back to the lease management system on the lookup service which cancels storage of the service.

8.1.2 Expiration

When a lease expires, it does so silently. That is, the lease granter (the lookup service) will not inform the lease holder (the service) that it has expired. While it might seem nice to get warning of a lease expiring so that it can be renewed, this would have to be in advance of the expiration (``I'm just about to expire, please renew me quickly!'') and this would probably be impractical. Instead, it is upto the service to call renew() before the lease expires if it wishes the lease to continue.

8.2. LeaseRenewalManager

Jini supplies a class LeaseRenewalManager that looks after the process of calling renew() at suitable times.


package net.jini.lease;

public Class LeaseRenewalManager {
    public LeaseRenewalManager();
    public LeaseRenewalManager(Lease lease,
                               long expiration,
                               LeaseListener listener);
    public void renewFor(Lease lease, long duration,
                         LeaseListener listener);
    public void renewUntil(Lease lease,
                           long expiration,
                           LeaseListener listener);
    // etc
}
This manages a set of leases, which may be set by the constructor or added later by renewFor() or renewUntil(). The time requested in these is in milliseconds. The expiration time is since the epoch, whereas the duration time is from now. Generally leases will be renewed and the manager will function quietly. However, the lookup service may decide not to renew a lease and will cause an exception to be thrown. This will be caught by the renewal manager and will cause the listener's notify() method to be called with a LeaseRenewalEvent as parameter. This will allow the application to take corrective action if its lease is denied. The listener may be null.

8.3. Granting and handling leases

All of the above discussion was from the side of a client that receives a lease, and has to manage it. The converse of this is the agent that grants leases and has to manage things from its side. This section contains more advanced material which can be skipped for now: it is not needed until the chapter on ``Remote Events''. An example of use is given in the chapter on ``More Complex Examples''.

A lease can be granted for almost any remote service, any one where one object wants to maintain information about another one which is not within the same virtual machine. Being remote, there are the added partial failure modes such as network crash, remote service crash, timeouts and so on. An object will want the remote service to keep ``pinging'' it periodically to say that it is still alive and wants the information kept. Without this periodic assurance, the object may conclude that the remote service has vanished or is somehow unreachable, and it should discard the information about it.

Leases are a very general mechanism for one service to have confidence in the existence of the other for a limited period. Being general, it allows a great deal of flexibility in use. Because of the possible variety of services, some parts of the Jini lease mechanisms cannot be given totally, and must be left as interfaces for applications to fill in. The generality means that all the details are not filled in for you, as your own requirements cannot be completely predicted in advance.

A lease is given as an interface


package net.jini.core.lease;

import java.rmi.RemoteException;

public interface Lease {

    long FOREVER;
    long ANY;

    long getExpiration();
    void cancel() throws UnknownLeaseException, RemoteException;
    void renew(long duration)
	throws LeaseDeniedException, UnknownLeaseException, RemoteException;
    void setSerialFormat(int format);
    int getSerialFormat();
    LeaseMap createLeaseMap(long duration);
    boolean canBatch(Lease lease);
}
and any agent that wishes to grant leases must implement this interface. Jini gives three implementations, an AbstractLease with subclass a LandlordLease which in turn has a subclass ConstrainableLandlordLease

A main issue in implementing a particular lease class lies in setting a policy for handling the initial request for a lease period, and in deciding what to do when a renewal request comes in. Some simple possibilities are

  1. Always grant the requested time

  2. Ignore the requested time and always grant a fixed time

Of course, there are many more possibilities, based on expected time to live of the lessor, system load, etc.

There are other issues, though. Any particular lease will need a time-out mechanism. A group of leases can be managed together, and this can reduce the amount of overhead of managing individual leases.

8.3.1 Abstract Lease

An abstract lease gives a basic implementation of a lease, that can almost be used for simple leases.


package com.sun.jini.lease;

public abstract class AbstractLease implements Lease, java.io.Serializable {
    protected AbstractLease(long expiration);
    public long getExpiration();
    public int getSerialFormat();
    public void setSerialFormat(int format);
    public void renew(long duration);
    protected abstract long doRenew(long duration);
}
This class supplies straightforward implementations of much of the Lease interface, with three provisos: firstly, the constructor is protected, so that constructing a lease with a specified duration is devolved to a subclass. This means that lease duration policy must be set by this subclass. Secondly, the renew() method calls into the abstract doRenew() method, again to force a subclass to implement a renewal policy. Thirdly, it does not implement the methods cancel() and createLeaseMap(), so that these must also be left to a subclass. So this class implements the easy things, and leaves all matters of policy to concrete subclasses.

8.3.2 Landlord Package

The ``landlord'' is a package to allow more complex leasing systems to be built. It is not part of the Jini specification, but is supplied as a set of classes and interfaces. The set is not complete in itself - some parts are left as interfaces, and need to have class implementations. These will be supplied by a particular application.

A landlord looks after a set of leases. Leases are indentified to the landlord by a ``cookie'', which is a unique identifier (Uuid) for each lease. A landlord does not need to create leases itelf, as it can use a landlord lease factory to do this. (But of course it can create them, depending on how an implementation is done.) When a lease wishes to cancel or renew itself, it asks its landlord to do it. A client is unlikely to ask the landlord directly, as it will only have been given a lease, not a landlord.

The principal classes and interfaces in the landlord package are shown in figure 8.2 .

Figure 8.2: Class diagram in the landlord package
where the interfaces are shown in italicised font and the classes in normal font.

The interfaces assume that they will be implemented in certain ways, in that each implementation class will contain a reference to certain other interfaces. This doesn't show in the interface specifications, but can be inferred from the method calls.

For example, suppose we wish to develop a lease mechanism for a Foo resource. We would create a FooLandlord to create and manage leases for Foo objects. A minimal structure for this could be

Figure 8.3: Class diagram in a minimal landlord implementation
The landlord creates a lease factory and asks it to create leases. Each lease contains a reference to its landlord. When requests are made of the lease such as renew() these are passed to the landlord for decisions. However, when the renew() request to the landlord does not pass in the lease, but just its uuid.

What is missing from the above simple figure is how the resource itself is dealt with, where leases end up and how decisions are made about whether or not to grant leases or renewals.

  1. Leases are given to the client that is requesting a lease. Calls such as renew() are remote calls to the landlord. It doesn't need a copy of the lease, but does need some representation of it. that is what the cookie is for: a leasor-side representation of the lease

  2. The resource that is being leased has a representation on the leasor. For example, a lookup service would have the marshalled form of the service proxy to manage. The leasor needs to have this representation plus the lease "handle" (the cookie) and information such as lease duration and expiration. These are given in an implementation of the LeasedResource interface

  3. Decisions about granting or renewing leases would need to be made using the LeasedResource. While these could be made by the landlord, it is cleaner to hand such a task to a separate object concerned with such policy decisions. This is the function of LeasePeriodPolicy objects. For example, the FixedLeasePeriodPolicy has a simple policy that grants lease times based on a fixed default and maximum lease

These lead to a more complex class diagram involving the resource and the policy classes:

Figure 8.4: Class diagram in a landlord implementation

With this as context, we shall now consider some of these classes in more detail.

8.3.3 Landlord Lease

The class LandlordLease extends AbstractLease. This has private fields cookie and landlord as shown in figure 8.5.

Figure 8.5: The class diagram for LandlordLease
Implementation of the methods cancel()and doRenew() is deferred to its landlord.

    public void cancel() {
	landlord.cancel(cookie);
    }

    protected long doRenew(long renewDuration) {
	return landlord.renew(cookie, renewDuration);
    }
The class can be used as is, with no subclassing needed. Note that the landlord system produces these leases, but does not actually keep them anywhere - they are passed on to clients, which then use the lease to call the landlord and hence interact with the landlord lease system. Within this system the cookie is used as an identifier for the lease.

8.3.4 Leased Resource

A LeasedResource is a convenience wrapper around a resource that includes extra information and methods for use by landlords. It defines an interface


public interface LeasedResource {
    public void setExpiration(long newExpiration);
    public long getExpiration();
    public Uuid getCookie();
}
This includes the "cookie", a unique identifier for a lease within a landlord system as well as expiration information for the lease. This is all the information maintained about the lease, which has been given out to a client.

An implementation will typically include the resource that is leased, plus a method of setting the cookie. For example,



/**
 * FooLeasedResource.java
 */
package foolandlord;

import com.sun.jini.landlord.LeasedResource;
import net.jini.id.Uuid;
import net.jini.id.UuidFactory;

public class FooLeasedResource implements LeasedResource  {

    protected Uuid cookie;
    protected Foo foo;
    protected long expiration = 0;

    public FooLeasedResource(Foo foo) {
        this.foo = foo;
	cookie = UuidFactory.generate();
    }

    public void setExpiration(long newExpiration) {
	this.expiration = newExpiration;
    }

    public long getExpiration() {
	return expiration;
    }
    public Uuid getCookie() {
	return cookie;
    }

    public Foo getFoo() {
	return foo;
    }
} // FooLeasedResource




8.3.5 Lease period Policy

A lease policy is used when a lease is first granted, and when it tries to renew itself. The time requested may be granted, modified or denied. A lease policy is specified by the LeasePeriodPolicy interface.


package com.sun.jini.landlord;

public interface LeasePeriodPolicy {
    LeasePeriodPolicy.Result grant(LeasedResource resource, long requestedDuration);
    LeasePeriodPolicy.Result renew(LeasedResource resource, long requestedDuration);
}

An implementation of this policy is given by the FixedLeasePeriodPolicy. The constructor takes maximum and default lease values. It uses these to grant and renew leases.

8.3.6 Landlord

The Landlord is the final interface in the package that we need for a basic landlord system. Other classes and interfaces, such as LeaseMap are for handling of leases in ``batches'', and will not be dealt with here. The Landlord interface is


package com.sun.jini.lease.landlord;

public interface Landlord extends Remote {

    public long renew(Uuid cookie, long extension)
	throws LeaseDeniedException, UnknownLeaseException, RemoteException;

    public void cancel(Uuid cookie)
	throws UnknownLeaseException, RemoteException;

    public RenewResults renewAll(Object[] cookies, long[] durations)
	throws RemoteException;

    public Map cancelAll(Uuid[] cookies)
	throws RemoteException;
}
The renew() and cancel() methods are usually called from the renew() and cancel() methods of a particular lease. An implementation of Landlord such as FooLandlord will probably have a table of LeasedResource objects indexed by the Uuid so that it can work out which resource the request is about.

For any implementation of the Landlord interface, the methods renewAll() and cancelAll() will clearly just loop through the cookies and call renew() and cancel() respectively on each cookie. There is a convenience class LandlordUtil which has methods renewAll() and cancelAll() which just do that, saving the programmer having to write the same code for each implementation. This utility class needs to have an object which implements just renew() and cancel() and the LocalLandlord interface has these two methods. So by making our FooLandlord also implement this interface, we can use the utility class to reduce the code we need to write.

The landlord won't make decisions itself about renewals. The renew() method needs to use a policy object to ask for renewal. In the FooManager implementation it uses a FixedLeasePeriodPolicy

There must be a method to ask for a new lease for a resource. This is not specified by the landlord package. This request will probably be made on the lease granting side and this should have access to the landlord object, which forms a central point for lease management. So the FooLandlord will quite likely have a method such as


    public Lease newFooLease(Foo foo, long duration);
which will give a lease for a resource.

The lease used in the landlord package is a LandlordLease. This contains a private field, which is a reference to the landlord itself. The lease is given to a client as a result of newFooLease(), and this client will usually be a remote object. This will involve serialising the lease and sending it to this remote client. While serialising it, the landlord field will also be serialised and sent to the client. When the client methods such as renew() are called, the implementation of the LandlordLease will make a call to the landlord, which by then will be remote from its origin. So the landlord object invoked by the lease will need to be a remote object making a remote call. In Jini 1.2 this would have been done by making FooLandlord a subclas of UnicastRemoteObject. In Jini 2.0 this is preferably done by explicitly exporting the landlord to get a proxy object. In the code that follows this is done using a BasicJeriExporter (for simplicity) but it would be better to use a configuration.

Putting all this together for the FooLandlord class gives



/**
 * FooLandlord.java
 */

package foolandlord;

import net.jini.core.lease.UnknownLeaseException;
import net.jini.core.lease.LeaseDeniedException;
import net.jini.core.lease.Lease;

import net.jini.jeri.BasicJeriExporter;
import net.jini.jeri.BasicILFactory;
import net.jini.jeri.tcp.TcpServerEndpoint;
import net.jini.export.*;

import java.rmi.Remote;
import java.rmi.RemoteException;

import java.util.Map;
import java.util.HashMap;
import net.jini.id.Uuid;

import com.sun.jini.landlord.Landlord;
import com.sun.jini.landlord.LeaseFactory;
import com.sun.jini.landlord.LeasedResource;
import com.sun.jini.landlord.FixedLeasePeriodPolicy;
import com.sun.jini.landlord.LeasePeriodPolicy;
import com.sun.jini.landlord.LeasePeriodPolicy.Result;
import com.sun.jini.landlord.Landlord.RenewResults;
import com.sun.jini.landlord.LandlordUtil;
import com.sun.jini.landlord.LocalLandlord;

import net.jini.id.UuidFactory;

public class FooLandlord implements Landlord, LocalLandlord {

    private static final long MAX_LEASE = Lease.FOREVER;
    private static final long DEFAULT_LEASE = 1000*60*5; // 5 minutes

    private Map leasedResourceMap = new HashMap();
    private LeasePeriodPolicy policy = new
	FixedLeasePeriodPolicy(MAX_LEASE, DEFAULT_LEASE);
    private Uuid myUuid = UuidFactory.generate();
    private LeaseFactory factory;

    public FooLandlord() throws java.rmi.RemoteException {
	Exporter exporter = new
	    BasicJeriExporter(TcpServerEndpoint.getInstance(0),
			      new BasicILFactory());
	Landlord proxy = (Landlord) exporter.export(this);
	factory = new LeaseFactory(proxy, myUuid);
    }

    public void cancel(Uuid cookie) throws UnknownLeaseException {
	if (leasedResourceMap.remove(cookie) == null) {
	    throw new UnknownLeaseException();
	}
    }

    public Map cancelAll(Uuid[] cookies) {
	return LandlordUtil.cancelAll(this, cookies);
    }

    public long renew(Uuid cookie,
		      long extension) throws LeaseDeniedException,
					     UnknownLeaseException {
	LeasedResource resource = (LeasedResource)
	    leasedResourceMap.get(cookie);
	LeasePeriodPolicy.Result result = null;
	if (resource != null) {
	    result = policy.renew(resource, extension);
	    resource.setExpiration(result.expiration);
	} else {
	    throw new UnknownLeaseException();
	}
	return result.duration;
    }

    public Landlord.RenewResults renewAll(Uuid[] cookies, long[] durations) {
	return LandlordUtil.renewAll(this, cookies, durations);
    }


    public LeasePeriodPolicy.Result grant(LeasedResource resource,
					  long requestedDuration)
	throws LeaseDeniedException {
	Uuid cookie = resource.getCookie();
	try {
	    leasedResourceMap.put(cookie, resource);
	} catch(Exception e) {
	    throw new LeaseDeniedException(e.toString());
	}
	return policy.grant(resource, requestedDuration);
    }

    public Lease newFooLease(Foo foo, long duration)
	throws LeaseDeniedException {


	FooLeasedResource resource = new FooLeasedResource(foo);
	Uuid cookie = resource.getCookie();

	// find out how long we should grant the lease for
	LeasePeriodPolicy.Result result = grant(resource, duration);
	long expiration = result.expiration;
	resource.setExpiration(expiration);

	Lease lease = factory.newLease(cookie, expiration);
	return lease;
    }

    public static void main(String[] args) throws RemoteException,
						  LeaseDeniedException,
						  UnknownLeaseException {
	// simple test harness

	long DURATION = 2000; // 2 secs;

	FooLandlord landlord = new FooLandlord();

	Lease lease = landlord.newFooLease(new Foo(), DURATION);
	long duration = lease.getExpiration() - System.currentTimeMillis();
	System.out.println("Lease granted for " + duration + " msecs");
	try {
	    Thread.sleep(1000);
	} catch(InterruptedException e) {
	    // ignore
	}
	lease.renew(5000);
	duration = lease.getExpiration() - System.currentTimeMillis();
	System.out.println("Lease renewed for " + duration + " msecs");
	lease.cancel();
	System.out.println("Lease cancelled");
    }
} // FooLandlord

An Ant file for this is



8.4. Summary

Leasing allows resources to be managed without complex garbage collection mechanisms. Leases received from services can be dealt with easily using LeaseRenewalManager. Entities that need to hand out leases can use a system such as the landlord system to handle these leases.
